The app supports RichText, for example, in the assignment description or in the comments in the service report. In the basic configuration, all text input fields are simple plain text fields. In the FSM, fields can be configured whose text can be edited and saved as RTF.

RichText editor in the app

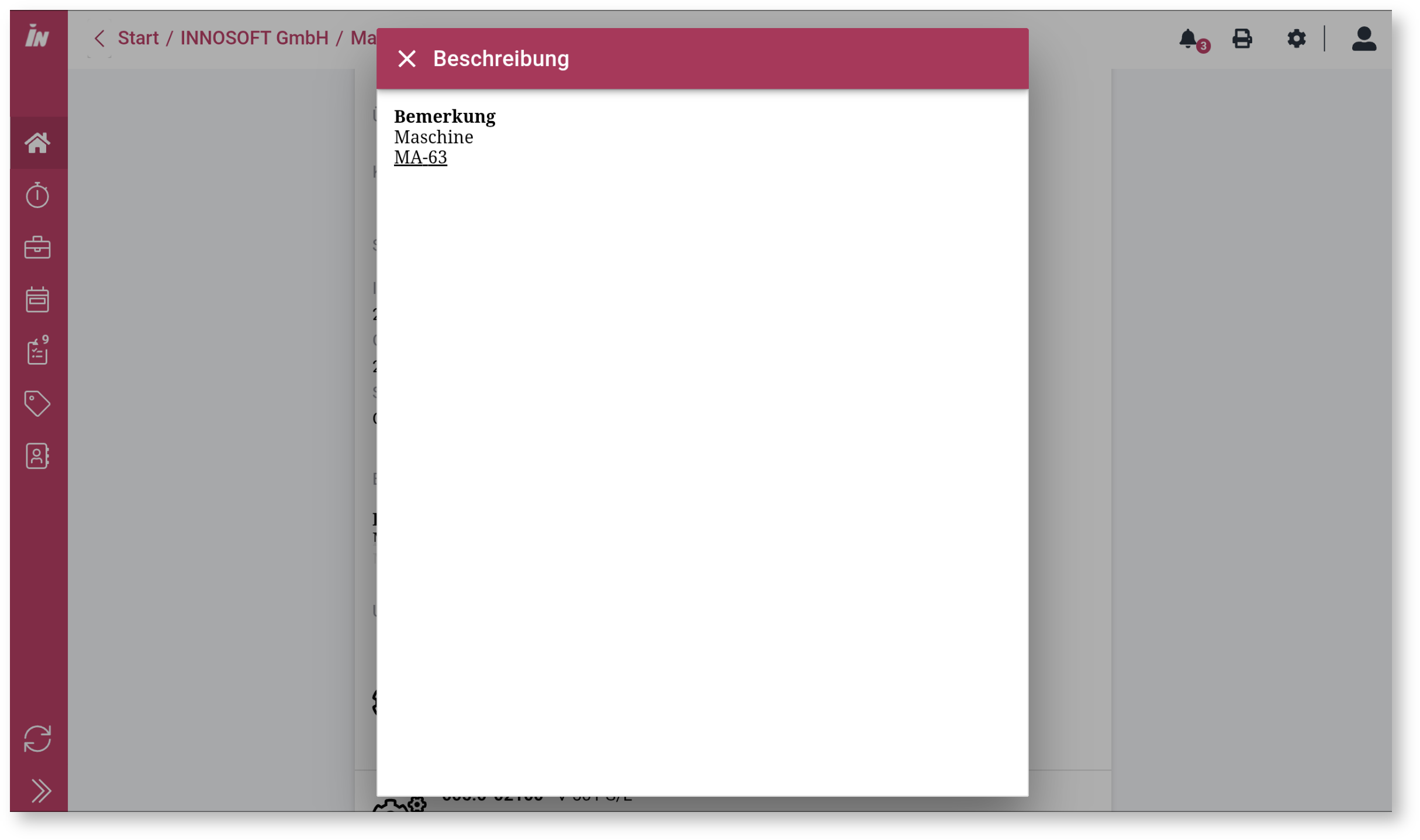

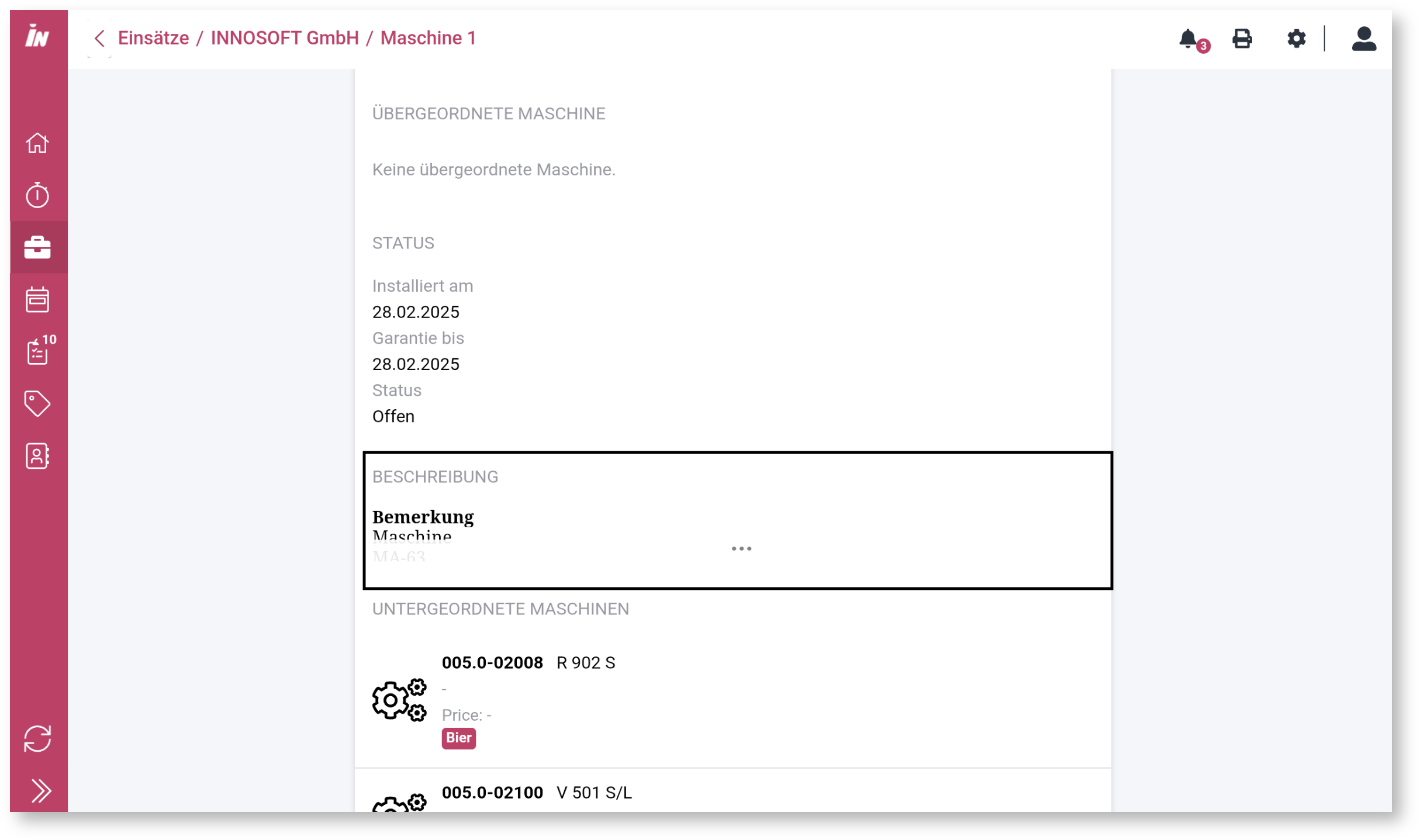

Readonly

images/download/attachments/596479605/Bildschirmfoto_2025-11-03_um_16.33.56.png

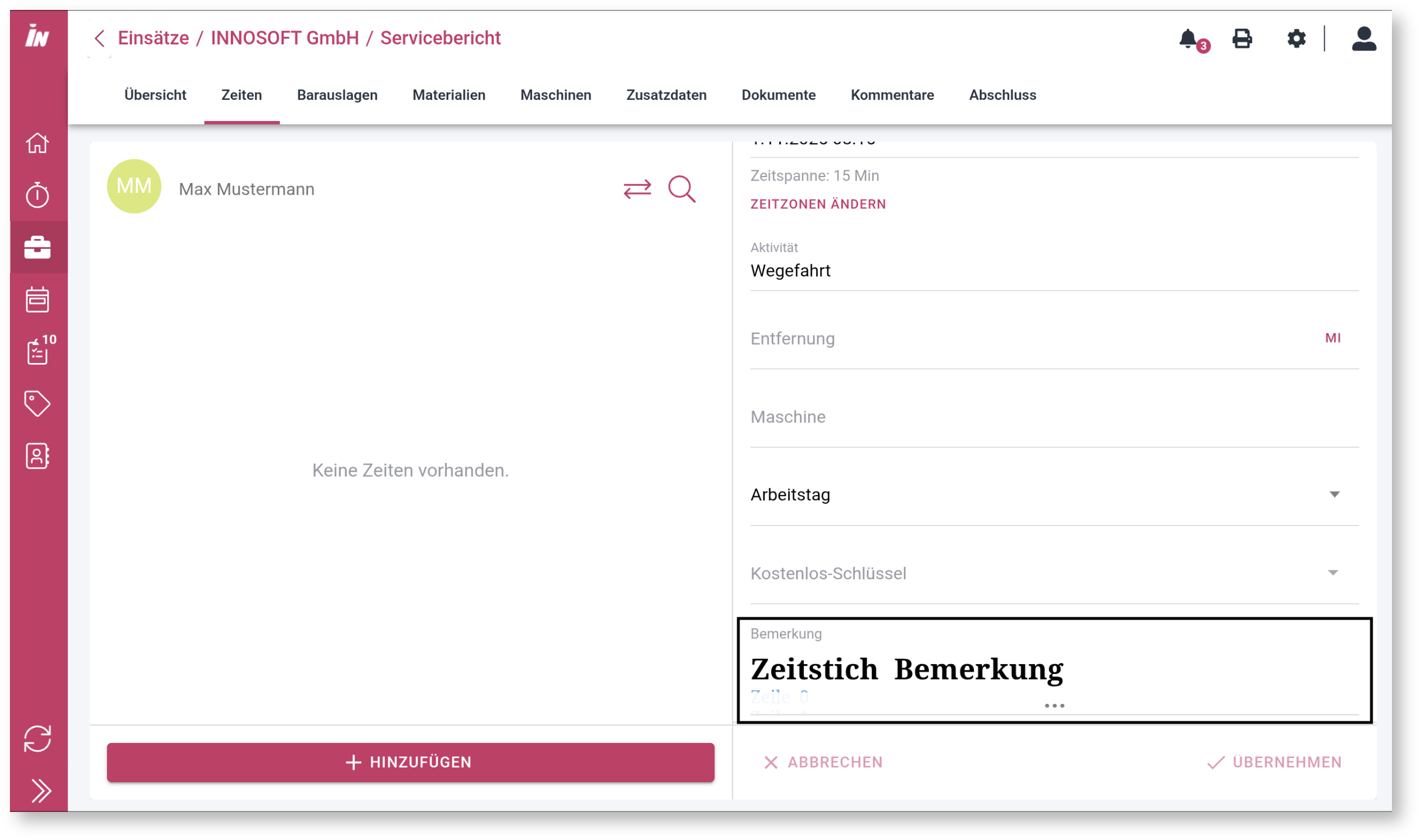

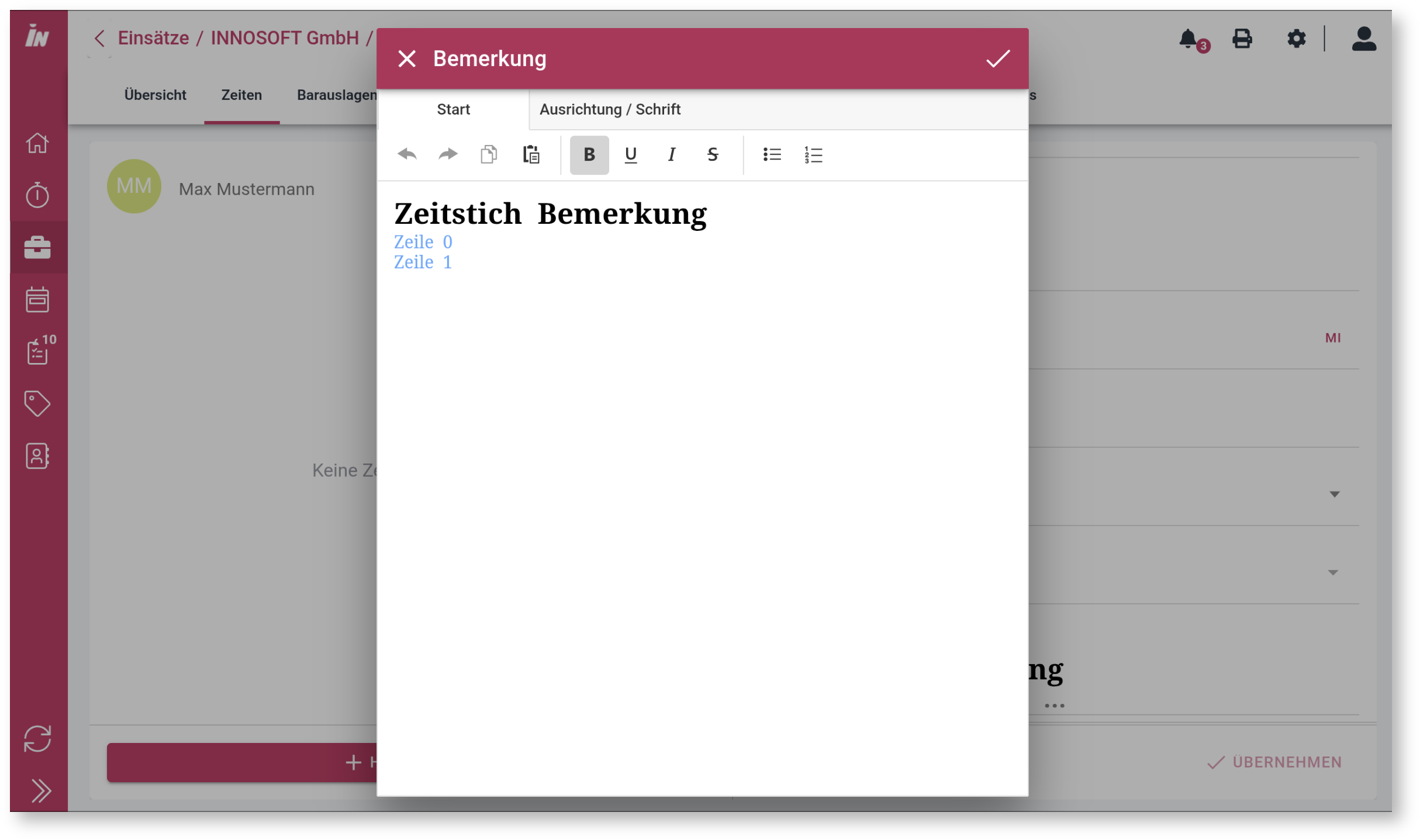

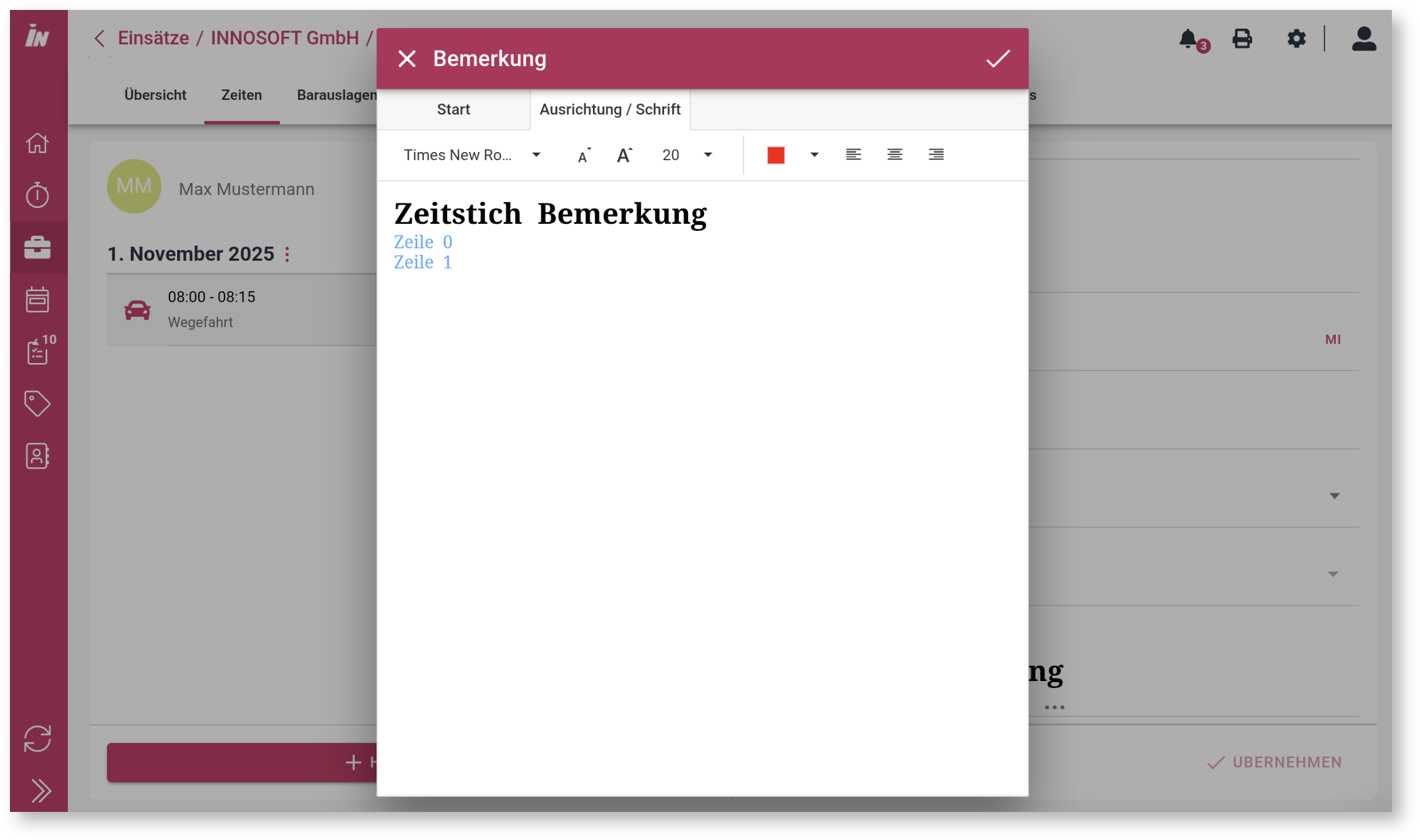

Editor

images/download/attachments/596479605/Bildschirmfoto_2025-11-03_um_16.30.39.png

The functionality of the editor is reduced to basic functions. We use the RichEdit component from devexpress: https://demos.devexpress.com/aspnetcore/Demo/RichEdit/Overview/. The demo shows that the component can do more than we offer. The range of functions is significantly limited to ensure comfortable use on smartphones. This minimum has been agreed upon for all screen sizes and operating systems.

Activation and configuration

Requirements

App v. 2.8.0
App Server v. 2.8.0
FSM v. 2.4.0
Printservice v 6.12.10009.3144 (Updating the RichText component and transferring RichText comments when creating documents)
Classic: Not supported

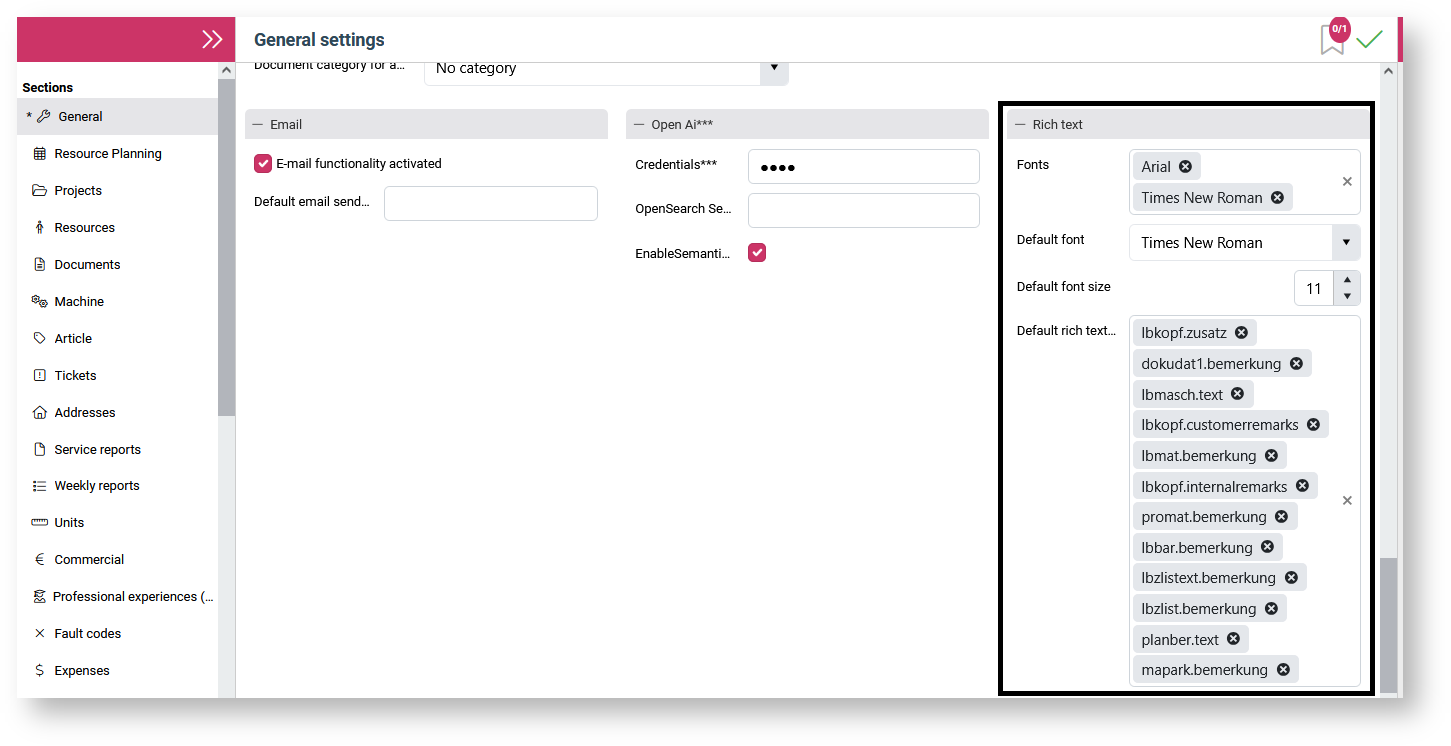

Standard fields and default font/size

images/download/attachments/596479605/General-settings_General_Rich-Text_v2.4.PNG

The RichText configuration can be set in the General Settings of the FSM.

Additional data

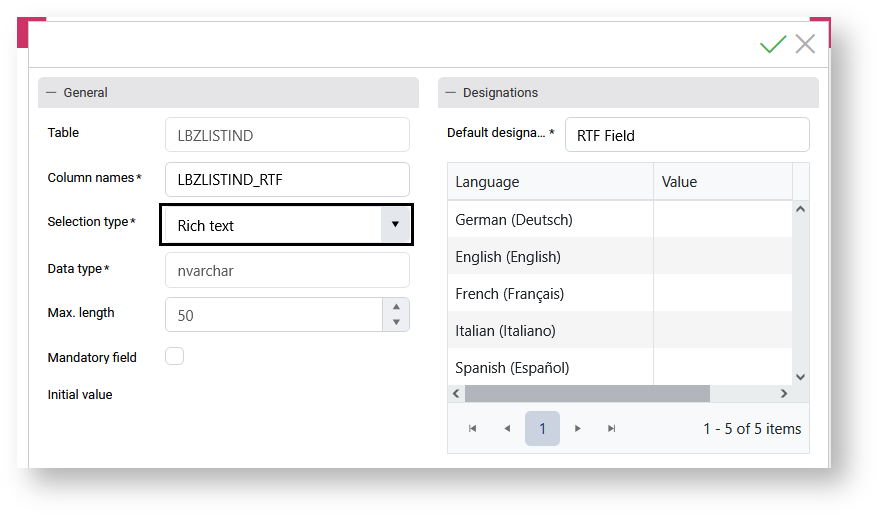

Additional data fields can also contain rich text. RTF additional data fields are represented as a separate additional data type (selection type = 170). Fields of this type can be added using FSM individual field editing.

images/download/attachments/596479605/Individual_field_editing_LBZLISTIND_RTF_v2.4.PNG

In order for the fields to be displayed in the app, they must be added to the CustomData view of the Admin Console for display in the app.

Supported fields

Standard fields

Type	Table + Field	APP	FSM
Assignment	planber.text	supported	supported
Service report	lbkopf.zusatz	supported	supported
Service report	lbkopf.customerremarks	supported	supported
Service report	lbkopf.internalremarks	supported	supported
Service report	lbzlist.bemerkung	supported	supported
Service report	lbzlistext.bemerkung	supported	supported
Service report	lbbar.bemerkung	supported	supported
Service report	lbmat.bemerkung	supported	supported
Service report	lbmasch.text	supported	supported
Weekly report	lbkopf.internalremarks	supported	planned
Weekly report	lbzlist.bemerkung	supported	planned
Document	dokudat1.bemerkung	supported	supported
Machine	mapark.bemerkung	supported	supported
Ticket	prokommentar.text	supported	planned
Ticket	promat.bemerkung	supported	supported

Additional data

The app supports rich text in additional data for all entities that support additional data. Rich text is not implemented for all entities in the FSM.

Print templates

The additional text for a signature is not currently supported.

Technical reports

A RichText response type is planned but not yet implemented. However, RichTexts can already be stored for documents in reports.

Technical details

Storage of standard fields

Text in RichText format is stored in a separate table. The RTF text is stored in the RICH_TEXT table and assigned to a target field (e.g., LLBZLIST.BEMERKUNG) and specific data record using RICH_TEXT_RELATION as a link table. It is defined that a RICH_TEXT data record may only be assigned to one target field and target data record. Multiple assignments are not permitted.

For compatibility reasons, plain text without formatting continues to be written in existing text fields (target fields) such as LBZLIST.BEMERKUNG. Field lengths of the target fields are not taken into account. If the field length is not sufficient for the plain text extracted from the RichText, it is shortened to the field length. Writing applications such as APP server and FSM keep the tables synchronized. There is no mechanism implemented via triggers on the database.

The RICH_TEXT table contains both rich text (RICH_TEXT_DATA) and plain text (PLAIN_TEXT). For example, if a time stamp is created without a comment, no data records are inserted into the RichText table structure. If existing RichText is deleted or changed to empty text, the data records remain in the RichText table structure. In this case, RICH_TEXT_DATA and PLAIN_TEXT would be changed to null and RICH_TEXT_SHA1_HEX to the sha1 hex value resulting from an empty byte array. This means that in the case of empty text, the applications involved do not write an empty RTF document with format information, but rather null values.

Storage of additional data fields

Rich texts for additional data are also stored in the RICH_TEXT table. In the IND table, the ID from RICH_TEXT.ID is stored as a foreign primary key.

Tables

RICH_TEXT

Field	Data type	Comment
ID	nvarchar(50)	Guid as primary key. Referenced in RICH_TEXT_RELATION, RICH_TEXT_TRANSLATIONS, and IND tables. Important: A RICH_TEXT record may only be assigned to one target field and may not be referenced multiple times.
LAST_CHANGED_LOGIN	nvarchar(12)	Change login
LAST_CHANGED_UTC	DateTime	Change date in UTC
LAST_CHANGED_OFFSET_IN_MINUTES	Integer	Offset shift of the change date LAST_CHANGED_UTC in minutes. For example, 120 for +02:00 (CEST).
RICH_TEXT_DATA	ByteArray, nullable	Binary RichText file content (RTF format). The RICH_TEXT_SHA1_HEX column must be updated with each update! Null represents an RTF document with no content.
PLAIN_TEXT	nvarchar(max), nullable	The content extracted from the RichText. Null represents an RTF document with no content and should be persisted instead of "".
RICH_TEXT_SHA1_HEX	nvarchar(40)	A SHA1 hash value calculated from RICH_TEXT_DATA. https://de.wikipedia.org/wiki/Secure_Hash_Algorithm If the value in RICH_TEXT_DATA is null, i.e., there is empty text, the SHA1 hex value resulting from an empty byte array is written. The hex value contains the characters a-f as lowercase letters and no leading 0x prefix! Example: da39a3ee5e6b4b0d3255bfef95601890afd80709

RICH_TEXT_RELATION

This table is intended to supplement rich text to existing plain text properties/columns. One example is the LBKOPF.CUSTOMERREMARKS field, which contains the customer comment as plain text for a receipt. If the application software captures the customer comment as rich text for new data, the rich text content is written to the RICH_TEXT table and linked to the target document and the customer comment property (CUSTOMERREMARKS) via the RICH_TEXT_RELATION table. The software writes a cleaned plain text back to the original LBKOPF.CUSTOMERREMARKS. When reading, the linked rich text via RICH_TEXT_RELATION is given preference over the original field. If no rich text is available, the plain text from the original field is displayed. This has the following advantages:

Legacy data without RichText can be read without data migration.
No schema adjustment of the target tables is necessary, e.g., no new field LBKOPF.CUSTOMERREMARKSRICHTEXTID is required.

Field	Data type	Comment
TARGET_TABLE	nvarchar(50)	Table name: e.g., "LBKOPF". For consistency reasons, always in UPPERCASE! Caution: For the target field PLANBER.TEXT, "PLANUNG" is entered in this column and "PLANBER.TEXT" in the RELATION_NAME field. This is done to make it clear that the column RICH_TEXT_ISGUID refers to PLANUNG.ISGUID.
TARGET_ISGUID	nvarchar(50)	Reference to ISGUID in TARGET_TABLE: e.g., LBKOPF.ISGUID
RELATION_NAME	nvarchar(50)	Reference to the field in the table: e.g., "ADDITIONAL", "CUSTOMERREMARKS" or "INTERNALREMARKS" (column names from LBKOPF). Special case: "PLANBER.TEXT", see note on TARGET_TABLE.
RICH_TEXT_ID	nvarchar(50)	Foreign primary key RICH_TEXT.ID

RICH_TEXT_TRANSLATIONS

Rich texts can be stored in this table depending on the language. This is currently used for the signature texts in the report definitions.

Field	Data type	Comment
ID	nvarchar(50)	Partial primary key (Guid)
LANGUAGE_CODE	nvarchar(10)	Partial primary key. Language code, e.g. "en" (i.e., not the Innosoft language ID)
RICH_TEXT_ID	nvarchar(50)	Foreign primary key for table RICH_TEXT

Example SQLs

RichText for standard field MAPARK.BEMERKUNG

-- Target parameter
DECLARE @targetTable nvarchar(50) = N'MAPARK';
DECLARE @relationName nvarchar(50) = N'BEMERKUNG';
DECLARE @targetIsguid nvarchar(50) = N'ca691ce9-a550-48df-bfab-097c018226cf'; -- enter a valid Isguid from MAPARK.ISGUID

-- RichText data
DECLARE @richTextId nvarchar(50) = CAST(NEWID() as nvarchar(50));
DECLARE @sampleRichText varbinary(max) = 0x7b5c727466315c64656666307b5c666f6e7474626c7b5c66302043616c696272693b7d7d7b5c636f6c6f7274626c203b5c726564305c677265656e305c626c7565323535203b7d7b5c2a5c646566636870205c667332327d7b5c7374796c657368656574207b5c716c5c66733232204e6f726d616c3b7d7b5c2a5c6373315c667332322044656661756c742050617261677261706820466f6e743b7d7b5c2a5c6373325c756c5c667332325c6366312048797065726c696e6b3b7d7b5c2a5c7473335c7473726f77645c667332325c716c5c747270616464666c335c7472706164646c3130385c7472706164646672335c747270616464723130385c747376657274616c745c636c74786c727462204e6f726d616c205461626c653b7d7d7b5c2a5c6c6973746f766572726964657461626c657d7b5c696e666f7d5c6e6f7569636f6d7061745c73706c7974776e696e655c68746d61757473705c657870736872746e5c73706c7470677061725c6465667461623732305c73656374645c6d6172676c73786e313434305c6d6172677273786e313434305c6d6172677473786e313434305c6d6172676273786e313434305c686561646572793732305c666f6f746572793732305c70677773786e31323234305c70676873786e31353834305c636f6c73315c636f6c73783732305c706172645c706c61696e5c716c7b5c667332325c6366302048656c6c6f2c207d7b5c625c667332325c63663020576f726c647d7b5c667332325c63663020217d5c667332325c6366305c7061727d;
DECLARE @sampleRichTextSha1Hex nvarchar(40) = N'3bc5e2d730c1c6564dea87c8bd75c9828c2e9b78';
DECLARE @samplePlainText nvarchar(100) = N'Hello, World!';

-- Meta information
DECLARE @lastChangedPwuserName nvarchar(12) = N'test'; -- enter a value contained in pwuser.name
DECLARE @lastChanged datetimeoffset = SYSDATETIMEOFFSET();
DECLARE @lastChangedOffsetMinutes int = DATEPART(tzoffset, @lastChanged);
DECLARE @lastChangedUtc datetime = CONVERT(datetime2, @lastChanged, 1);

INSERT INTO Rich_Text(
    Id,
    Rich_Text_Data,
    Rich_Text_Sha1_Hex,
    Plain_Text,
    Last_Changed_Utc,
	Last_Changed_Offset_In_Minutes,
    Last_Changed_Login
)
VALUES (@richTextId, @sampleRichText, @sampleRichTextSha1Hex, @samplePlainText, @lastChangedUtc , @lastChangedOffsetMinutes , @lastChangedPwuserName);

INSERT INTO Rich_Text_Relation (
	Target_Table,
	Relation_Name,
	Target_IsGuid,
	Rich_Text_Id
)
VALUES (@targetTable, @relationName, @targetIsguid, @richTextId);

UPDATE MAPARK SET BEMERKUNG = LEFT(@samplePlainText, 33) WHERE ISGUID = @targetIsguid; -- Alternativ INSERT

RichText for additional data field PLIND.PLIND_ZUSATZ_RT_ID

Create field in PLIND and PLSTEUER

ALTER TABLE PLIND ADD PLIND_ZUSATZ_RT_ID NVARCHAR(50);

INSERT INTO PLSTEUER (BEZEICHNUNG, AUSWAHLTYP) VALUES (N'PLIND_ZUSATZ_RT_ID', 170);

-- add english as default field label and german as translation
INSERT INTO PLTRANSLATE (TABELLE, FELD, BEZEICHNUNG) VALUES (N'PLIND', N'PLIND_ZUSATZ_RT_ID', N'Additional remark');
INSERT INTO PLTRANSLATELANG (TABELLE, FELD, SPRACHE, BEZEICHNUNG) VALUES (N'PLIND', N'PLIND_ZUSATZ_RT_ID', 0, N'Zusätzliche Bemerkung');

Fill field with RichText

-- Target parameter
DECLARE @projnr nvarchar(20) = N'PROJNR-0001'; -- enter a valid PROJNR
DECLARE @pindex int = 1; -- enter a valid PINDEX

-- RichText data
DECLARE @richTextId nvarchar(50) = CAST(NEWID() as nvarchar(50));
DECLARE @sampleRichText varbinary(max) = 0x7b5c727466315c64656666307b5c666f6e7474626c7b5c66302043616c696272693b7d7d7b5c636f6c6f7274626c203b5c726564305c677265656e305c626c7565323535203b7d7b5c2a5c646566636870205c667332327d7b5c7374796c657368656574207b5c716c5c66733232204e6f726d616c3b7d7b5c2a5c6373315c667332322044656661756c742050617261677261706820466f6e743b7d7b5c2a5c6373325c756c5c667332325c6366312048797065726c696e6b3b7d7b5c2a5c7473335c7473726f77645c667332325c716c5c747270616464666c335c7472706164646c3130385c7472706164646672335c747270616464723130385c747376657274616c745c636c74786c727462204e6f726d616c205461626c653b7d7d7b5c2a5c6c6973746f766572726964657461626c657d7b5c696e666f7d5c6e6f7569636f6d7061745c73706c7974776e696e655c68746d61757473705c657870736872746e5c73706c7470677061725c6465667461623732305c73656374645c6d6172676c73786e313434305c6d6172677273786e313434305c6d6172677473786e313434305c6d6172676273786e313434305c686561646572793732305c666f6f746572793732305c70677773786e31323234305c70676873786e31353834305c636f6c73315c636f6c73783732305c706172645c706c61696e5c716c7b5c667332325c6366302048656c6c6f2c207d7b5c625c667332325c63663020576f726c647d7b5c667332325c63663020217d5c667332325c6366305c7061727d;
DECLARE @sampleRichTextSha1Hex nvarchar(40) = N'3bc5e2d730c1c6564dea87c8bd75c9828c2e9b78';
DECLARE @samplePlainText nvarchar(100) = N'Hello, World!';

-- Meta information
DECLARE @lastChangedPwuserName nvarchar(12) = N'test'; -- enter a value contained in pwuser.name
DECLARE @lastChanged datetimeoffset = SYSDATETIMEOFFSET();
DECLARE @lastChangedOffsetMinutes int = DATEPART(tzoffset, @lastChanged);
DECLARE @lastChangedUtc datetime = CONVERT(datetime2, @lastChanged, 1);

INSERT INTO Rich_Text(
    Id,
    Rich_Text_Data,
    Rich_Text_Sha1_Hex,
    Plain_Text,
    Last_Changed_Utc,
	Last_Changed_Offset_In_Minutes,
    Last_Changed_Login
)
VALUES (@richTextId, @sampleRichText, @sampleRichTextSha1Hex, @samplePlainText, @lastChangedUtc, @lastChangedOffsetMinutes, @lastChangedPwuserName);

MERGE PLIND AS target
USING (VALUES (@projnr, @pindex, @richTextId)) as source (projnr, pindex, richTextId)
	ON target.projnr = source.projnr AND target.pindex = source.pindex
WHEN MATCHED THEN UPDATE SET PLIND_ZUSATZ_RT_ID = source.richTextId
WHEN NOT MATCHED THEN INSERT (PROJNR, PINDEX, PLIND_ZUSATZ_RT_ID) VALUES (source.projnr, source.pindex, source.richTextId);
